Face Drill Rig
OverviewFKDR89Y2 underground remote-control production drilling rig is used for middle to large-vein tunneling and mining applications. It is equipped with a Focor top-hammer hydraulic drilling machine for hole diameter from 51 to 89 (102) mm and a versatile positioning unit to match various methods in production drilling. The patent-winning Focor hydraulic rock drill with the impact frequency up to 60-75Hz is installed on the rig. Front- and rear-mounted stinger for optimized reach and flexibility. When you need a hard working, high-precision rig for long-hole drilling, you can choose FKDR89Y2
To increase productivity, rig components have been engineered for extreme durability and the system is based on standard parts, making rig maintenance simple and economical. In order to improve production efficiency, the components of the drilling rig are made with extremely high durability, and the system is based on standard components, making the drilling rig easy to maintain and economical. Rotary pressure control feed with anti-interference function improves the economical efficiency of COP rock drill for drilling steel. Low-emission diesel engines provide powerful performance with less environmental impact.

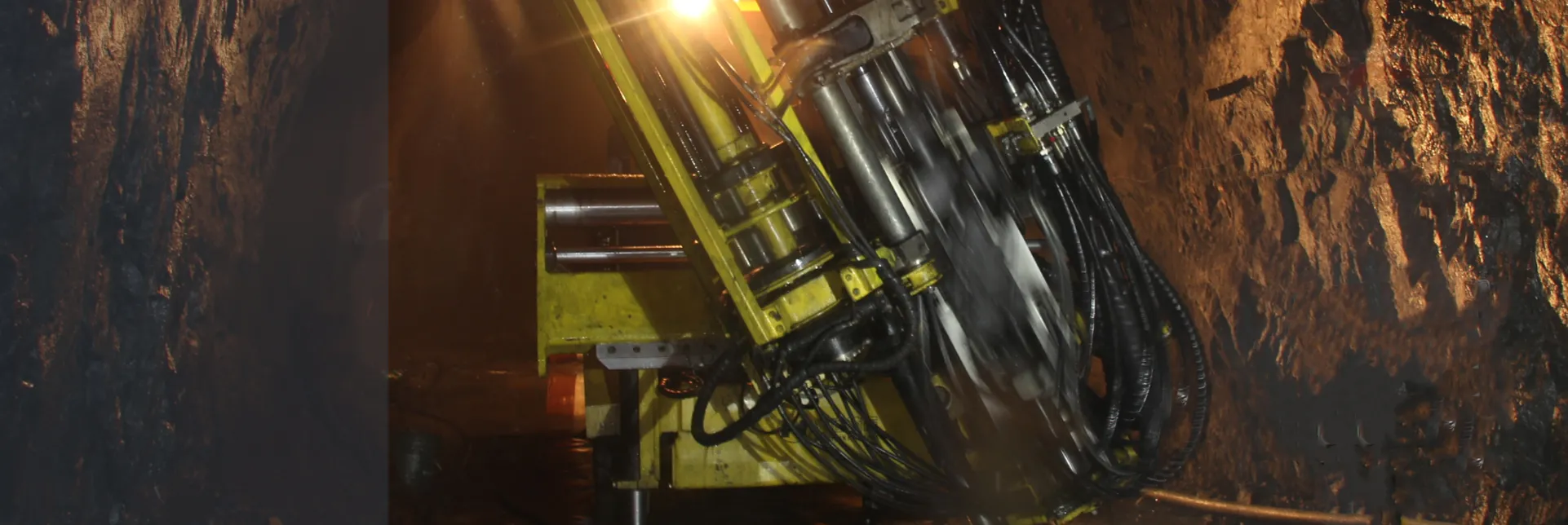

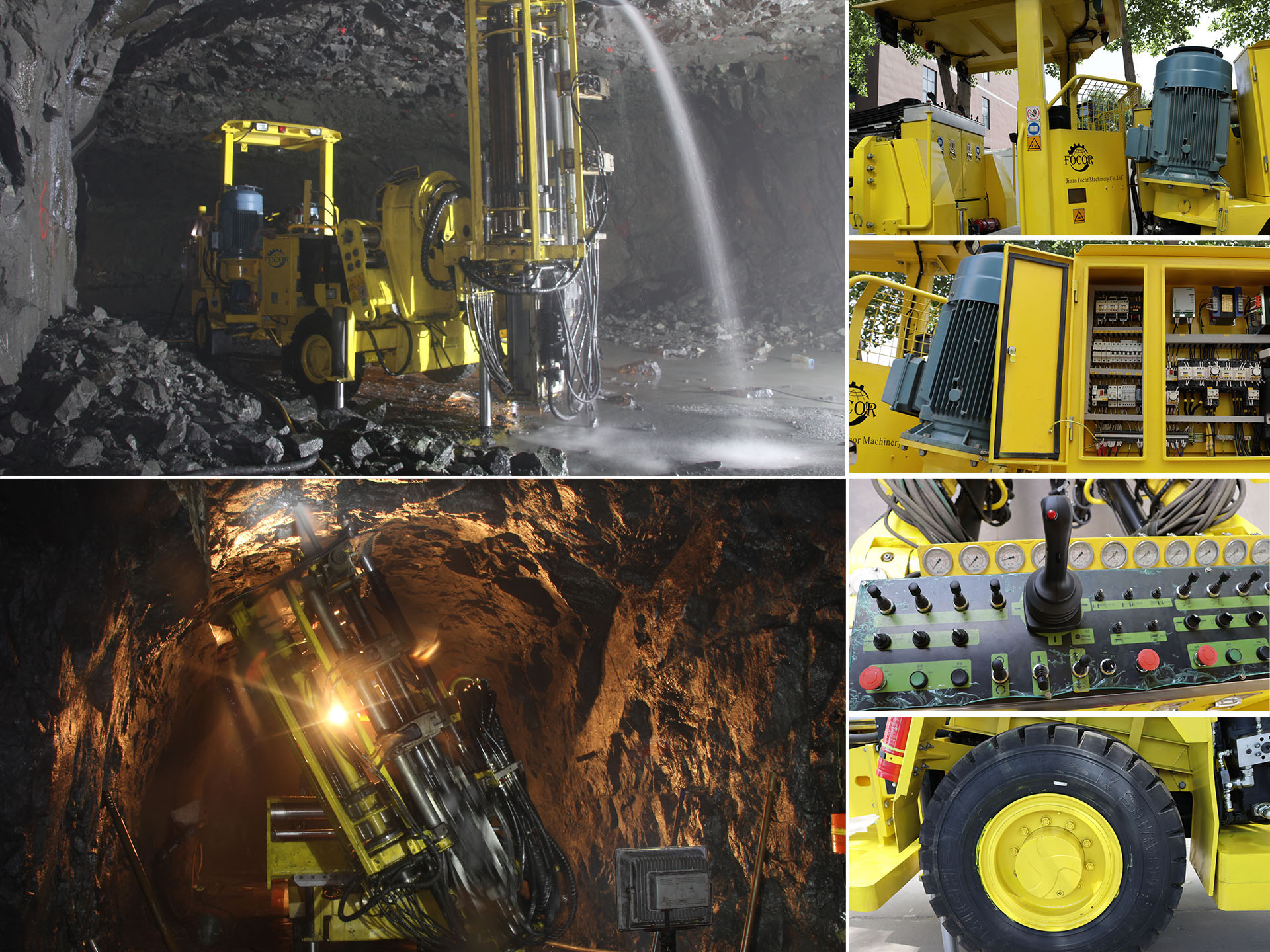

DETAIL PHOTO
| Rock Drill | Control system | |||
| Brand | FOCOR550 | Electrical Direct System, EDS | ||
| Shank adapter | R32 R38 T38 | Basic functions such as anti-jamming included | ||
| Impact power | 24kW | Power pack | ||
| Impact rate | 60-75 Hz | Hydraulic pump for percussion | ||
| Hydraulic pressure | 230bar | Hydraulic pump for rotation, positioning, feed | ||
| Rotation motors | Separate rotation | Pump unloaded at start | ||
| Rotation speed | 0-300 rpm | System pressure, max | 200 bar | |
| Hole diameter | 51-89 mm | Hydraulic oil tank, volume max | 195 L | |
| Lub. air consumption | 5 L/s | Low oil level indicator including shut down supervised | ||
| Water consumption | 50 L/min | Oil temperature gauge on oil tank, electronically supervised | ||
| Weight | 190 kg | Electric oil filling pump | ||
| Feed | Oil filter indicator | |||
| Brand | HYTL | Water cooled oil cooler in stainless container | ||
| Drill rod length | 3770 mm | Mineral hydraulic oil | ||
| Total length | 1830 mm | Filtration | 10 um | |
| Carrier | Drilling unit | |||
| Diesel Engine | Deutz F914L04 | Rod Handling system, RHS27 | 27+1 rods | |
| Power rating at 2300 rpm | 58 kW | Adaptable to R32, T38, T45 Speedrods | ||
| Torque at 1500 rpm | 258 Nm | Mechanized drilling up to 50meters | ||
| Fixed seat for tramming with safety belt | Adaptable to 1.5m or 1.8m rods | |||
| Articulated steering | ±41° | Positioning system | ||
| Four-wheel drive | Feed extension (with 1.5m/1.8m drill steel) | 1200 mm | ||
| FOPS-approved protective roof | Rotary Acurator HYXZ 76 for 360° ring drilling | |||
| Hydrostatic power steering system | Sliding table HYHT 8 gives 1.5 m feed parallel positioning | |||
| Front axle | Dana 123 | Pendulum arm HYBB 10 gives 1.5 feed parallel positioning in the side | ||
| Rear axle | Dana 123, ± 8° oscillation | walls, Adds further 1.5m feed parallel positioning upwards/ downwards | ||
| Front axle Automatic differential lock, limited slip | Stringer backward on feed | HYXD 200 | ||
| Tyres | 12.00 x R20 | Stringer forward on feed | HYSD 115 | |
| Clearance outside axles | 15° | Feed dump, drilling | +20° forward and-65° backward | |
| Hydraulic jacks, front | 2 extendable | Air system | ||
| Hydraulic jacks, rear | 2 | Compressor | Good quality | |
| Service brakes 2 separate circuits (hydraulically applied, fully enclosed wet disc, brakes) | Capacity at 10 bar | 10 L/s | ||
| Emergency and parking brakes | SAHR | Hole blowing kit with external air | ||
| Fuel tank, volume | 60 L | Electrical system | ||
| Electric system | 24 V | Voltage | 380-1000 V | |
| Batteries | 2x70 Ah | Total installed power | 68 kw | |
| Tramming lights | 8x 70 W | Main motors | 55 kW | |
| Illuminated stairs for platform/ brake lights | Frequency | 50-60 Hz | ||
| Central lubrication system | Starting method | star/delta(380 V- 690 V) direct (1000 V) | ||
| Catalyser, silencer, spirit levels | Thermal overload protection for electric motor | |||
| Gradeability at max load on drive wheels | 1:4 | Percussion hour meter on operator display | ||
| Training speed on flat ground | >10 km/h | Digital voltmeter / amperage meter in electric cabinet | ||
| Training speed on incline 1:8 | >4 km/h | Phase sequence indicator/ Earth fault indicator/Battery charger | ||
| Horn, beacon, and reverse alarm | Transformer | 4 kVA | ||
| Outlet for communication radio | 12 V | Working lights | 2 x 200 W, 24 V | |
| Water system | Cable reel, inner / outer diameter, mm | ∅660/ 1400 mm | ||
| Electric water boost pump | ||||
| Capacity at 10bar boost | max 200 l/min | |||
| Min water inlet pressure | 2 bar | |||
| Water pressure gauge / water flow guard | ||||
The new Intelligent mining and positioning system shorten the drilling time, improve the drilling efficiency and save the costs of the miners
Automatic Rod Handling System (RHS) with 27 rods for maximum drilling depth
A super sensitive anti-jamming system makes the automatic-adapted drilling process efficient • Equipped with patent-wining Focor550 series hydraulic rock drill, Focor550 series can reach the impact frequency up to 60-75Hz under actual working environment. Powered by a 55KW electric motor, the drilling speed of Focor under working pressure of 16 to 17Mpa is obviously faster than similar products under working pressure of 19Mpa. Thanks to Focor 550, the straightness, compactness, and slipperiness of the production hole are outstanding.
Download
| MODEL | BOOM | LENGTH | WIDTH | HEIGHT | DRILLING SECTION | HOLE DIAMETER | POWER OF DIESEL ENGINE | POWER OF ELECTRIC MOTOR | SPEC SHEET |
| FKDR64Y | Single | 6350 mm | 1700 mm | 1900 mm | 3×3.3 m | 45-64 mm | 58 kw | 68 kw | down |
| FKDR89Y2 | Twin | 8763 mm | 1950 mm | 2260 mm | 7.4×5.22 m | 51-89 mm | 58 kw | 68 kw | down |
| FKDR89Y | Single | 7180 mm | 2000 mm | 2180 mm | 4.6 × 5.07 m | 51-76 mm | 58 kw | 68 kw | down |
