OverviewProduct Description
The low-profile FKWJ-3 underground diesel loader is a new compact light-duty 7-ton rated capacity (LHD) designed for medium-sized mining applications. The comfortable and safe cab equipped with automatic forward and reverse cameras as standard in the car provides drivers with good driving functions. Best payload to deadweight ratio in its class. It reduces dilution, improves dexterity and operator safety when working in vein work.
FKWJ-3 underground diesel loader 7 is versatile, sturdy and reliable. Not only for hard rock applications, but also for operations in tunnels and soft rock applications.
Advantage

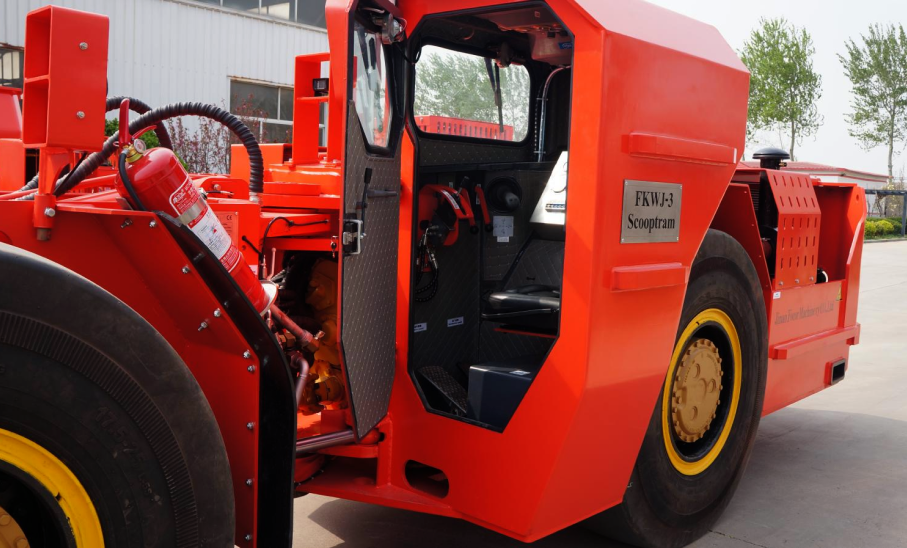

Operator's cab in rear frame improves operator safety and ergonomics ;
Main parts are imported top brand, like Deutz or Cummins Engine, DANA torque converter, transmission, axle Parker pump and valves etc.
| General Parameter | Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | Height(cabin) | Height(cabin) |
| Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | Height(cabin) | Height(cabin) | |
| Traveling performance | Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | Height(cabin) | Height(cabin) |
| Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | Height(cabin) | Height(cabin) | |
| Torque Converter | Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | Height(cabin) | Height(cabin) |
| Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | |||
| Axle | Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) | ||
| Rated capacity | Loader Weight & Capacity | Length(bucket up) | Width(bucket) | Width(frame) | Height(cabin) | Height(cabin) |
Equipped with Original Deutz Engine supply strong power and stable performance,only few maintenance points compact power-pack with low weight.
Brand: DANA Type: Single stage two components with hydraulic pump drive. Optional brand: KESSLER
A parallel boom design matched to an aggressive bucket configuration provide for efficient mucking ; Operations :Various bucket sizes
Side seated operator position for efficient bi-directional operation with maximum visibility ; Ergonomic operator seat with seat belt for comfort during a full operating shift
Underground Loader
Download
| PRODUCT | PAYLOAD | BUCKET | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FKWJ-0.6 | 1200 kg | 0.6 m³ | 4910 mm | 1150 mm | 1825 mm | 58 kw | Diesel Engine | down |

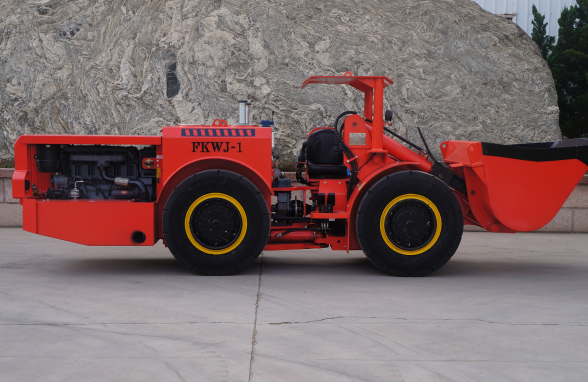

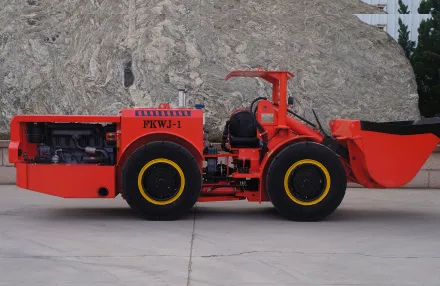

| FKWJ-1 | 2000 kg | 1 m³ | 5700 mm | 1300 mm | 1920 mm | 58 kw | Diesel Engine | down |
| FKWJ-2 | 4000 kg | 2 m³ | 7060 mm | 1500 mm | 2009 mm | 84 kw | Diesel Engine | down |
| FKWJ-3 | 7000 kg | 3 m³ | 9350 mm | 2150 mm | 2252 mm | 165 kw | Diesel Engine | down |
| FKWJ-4 | 8000 kg | 4 m³ | 9400 mm | 2500 mm | 2300 mm | 170 kw | Diesel Engine | down |
| FKWJ-6 | 14000 kg | 6 m³ | 10502 mm | 2864mm | 2545mm | 256 kw | Diesel Engine | down |
| FKWJ-0.6E | 1200 kg | 0.6 m³ | 4960 mm | 1150 mm | 1760 mm | 30 kw | Electric Motor | down |
| FKWJ-1E | 2000 kg | 1 m³ | 5710 mm | 1300 mm | 1920 mm | 45 kw | Electric Motor | down |
| FKWJ-2E | 4000 kg | 2 m³ | 7130 mm | 1840 mm | 1964 mm | 75 kw | Electric Motor | down |
| FKWJ-3E | 6000 kg | 3 m³ | 8600 mm | 2160 mm | 2760 mm | 90 kw | Electric Motor | down |
