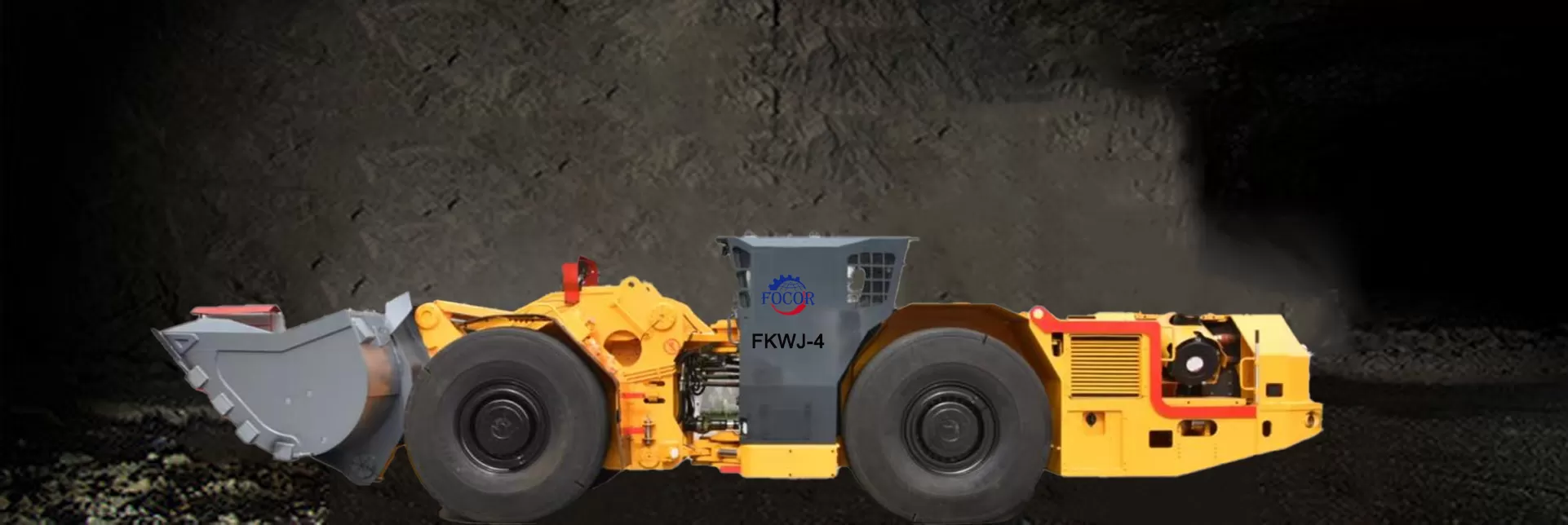

OverviewThe Scooptram FKWJ-4 is a reliable 8 ton capacity underground loader that delivers unrivaled productivity in tough underground conditions. The FKWJ-4 Underground Loader is designed for high production, low cost tonnage and tamping in underground mining applications. An operator favorite, it provides a safe, comfortable ride in the cab with easy-to-use controls and efficiency-enhancing features that optimize performance and maximize productivity. Its compact design provides flexible performance combined with robust construction and simplified maintenance to ensure excellent productivity, long life and low operating costs.
FKWJ-4 underground diesel loader fuel efficient engine delivers powerful thrust for fast bucket filling and high speed tramming for high productivity. The engine for unrivaled traction when digging, pedaling and traversing steep grades. Optional engines comply with EU Stage III and US EPA Tier 3 standards. Optional Reduced Ventilation (VR) package, which combines selective engine hardware and software to reduce diesel particulate matter in engine exhaust and provide significant ventilation rate reductions, lower fuel consumption, and maintain or enhance product performance . Torque rises to effectively match transmission shift points for maximum efficiency and fast cycle times. Four sizes of dump buckets provide unmatched productivity and structural reliability, featuring two types of cast corners to help strengthen the side plate-lip engagement and allow for a variety of cutting edges. The frame is designed to withstand the extreme forces generated during loading and pedaling cycles, with deep penetration and consistent welds that ensure a solid fusion of the structure, providing a solid platform for the linkage and axle.
To make your job easier, we offer digital add-ons ranging from diagnostics and remote control to fully autonomous operation.
ADVANTAGE
1.Ergonomic canopy and side seats provide good two-way view operation.
2.Enhanced boom and load frame geometry optimize digging performance

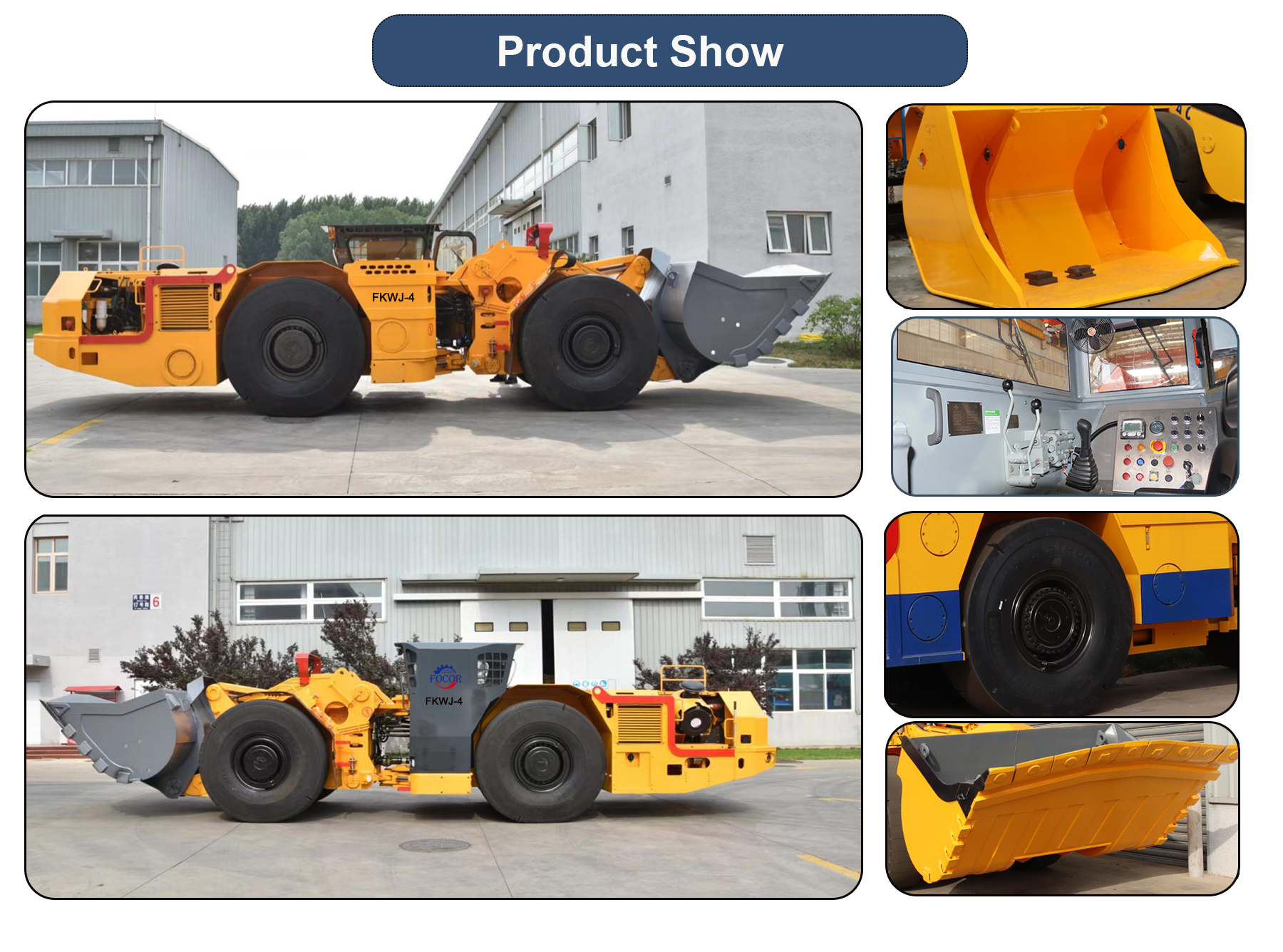

DETAIL SHOW
| General Parameter | Weight | ||
| Rated capacity | 10000 kg | Operating weight | 30500 kg |
| Length | 9790 mm | Fully loaded | 40500 kg |
| Width(Include bucket) | 2660 mm | Tramming Capacities | |
| Height(with Canopy) | 2350 mm | 1 shift forward/backward | 4 km/h |
| Bucket volume | 4 m³ | 2 shift forward/backward | 10 km/h |
| Ground clearance | 375 mm | 3 shift forward/backward | 16 km/h |
| Dump angle | 38° | 4 shift forward/backward | 20 km/h |
| Max. dumping heigh | 2310 mm | Grade ability | 25% (load) |
| Dumping distance | 1520 mm | Diesel Engine | |
| Max. lifting height | 5500 mm | Brand | VOLVO |
| Max. tractive effort | ≥240 kN | Type | TAD853VE |
| Max. tipping load | 203 kN | Design | Water-cooled diesel engine |
| Breakout force | 185 kN | Max. power | 235kW/2200rpm |
| Oscillating angle of rear frame | ± 8° | Max. torque | 1300Nm/1500rpm |
| Departure angle | 14° | Air intake system | Dry air filter |
| Torque Converter | Exhaust system | DOC exhaust gas catalytic , Purifier and muffler | |
| Brand | American DANA | Starter, power/voltage | 5.5kW/24V |
| Type | C5000 | Alternator, voltage/ampere | 28V/110 A |
| Design | Single stage industrial type with auxiliary drives for steering and dump/host hydraulic system | Exhaust quality Meets | U.S. EPA Tier 3 and EU Stage Ⅲ A |
| Front Axle | Power Shift Transmission | ||
| Manufacturer | KESSLER | Brand | American DANA |
| Type | D102 | Type | R36000 Series |
| Design | Rigid planetary axles with limited slip differential | Design | Power shift transmission with 4 forward and 4 reverse gears |
| Rear Axle | Brakes | ||
| Manufacturer | KESSLER | Design | Spring applied hydraulic release. Fully enclosed, force cooled multiple Wet discs at each wheel end. |
| Type | D102 | Brake system design | Set service, parking and emergency Brake in one |
| Design | Rigid planetary axles with No-Spin differential | Service brake accumulator pressure | 15.5-18.6 MPa |
| Wheels＆ Tires | Steering | ||
| Size | 18.00-25 TT | Type | Orbit type |
| Tire filling pressure | 7.5 bar | Design | swivel-joint hydraulic power steering |
| Hydraulic System | Steering angle | ± 42.5° | |
| Pump delivery flow rate | 260 L/min | Inner clearance circle | 3265±200 mm |
| System pressure | 27 MPa | Outer Clearance circle | 6500±200 mm |
| Number of dump hydraulic cylinders | 1 | Electrical Equipment | |
| Number of hoist hydraulic cylinders | 2 | Operating voltage | 24V |
| Lifting time | <7.8s | Batteries | 2×12V/120Ah |
| Lowering time | <4.8 s | Lighting System | |
| Dumping time | <3 s | Main headlights | 4×27 W |
| Steering hydraulic system | Electric Joystick control | Reversing headlights | 4×27 W |
| Pump delivery flow rate | 100 L/min | Reverse alarming | 112 dB |
| System pressure | 19 MPa | Beacon light | 1 |
| Number of steering cylinders | 2 | Safety Features | |
| Optional Configurations | Canopy | SAE heavy duty tubular canopy ROPS/FOPS | |
| Remote control | Optional | Fire suppression | Portable manual fire extinguisher |
| Centralized lubrication system | Optional | Machine start-up | Machine start on transmission neutral position |
| Self-extinguishing configure | Optional | Servicing | Boom lock mechanism when servicing machine with boom raised |
| Filling Volumes | Parking brake | Brake automaticity when Engine turn off | |
| Fuel tank | 350 L | Door limit switch | Parking brake works and not allow to start Engine on if the door open |
| Hydraulic tank | 260 L | Audible alarm | Reverse alarming |
| Diesel engine oil pan | 27 L | Operator Cabin | |
| Engine coolant | 36 L | Operator Area | Side seating, with easy access to all controls |
| Torque converter/power shift | 45 L | Operator Seat | Spring cushioned seat. Adjustable Horizontal distance from control Panel and vertical height from Operator’s cabin floor |
| Front axle differential gear | 35 L | Meters/gauges | Tachometer and hourmeter Torque converter pressure gauge Torque converter temperature gauge |
| Front axle planetary gear | 2×6.5 L | Joystick operating force | ≤120 N |
| Rear axle differential gear | 35 L | Pedal operating force | ≤350 N |
| Rear axle planetary gear | 2×6.5 L | Operating noise | ≤90 dB(A) |
Cast boom cross-tube: The FKWJ-4 Underground Diesel Loader features a reinforced boom design and refined unit geometry ;
Low emission engine to ensure sustainable mining ;
Ergonomic cab : The 07 cab is designed to enhance operator performance with enhanced ergonomics, intuitive and easy-to-operate controls, and comfort features that reduce fatigue during long shifts.
Download
| PRODUCT | PAYLOAD | BUCKET | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FKWJ-0.6 | 1200 kg | 0.6 m³ | 4910 mm | 1150 mm | 1825 mm | 58 kw | Diesel Engine | down |
| FKWJ-1 | 2000 kg | 1 m³ | 5700 mm | 1300 mm | 1920 mm | 58 kw | Diesel Engine | down |
| FKWJ-2 | 4000 kg | 2 m³ | 7060 mm | 1500 mm | 2009 mm | 84 kw | Diesel Engine | down |
| FKWJ-3 | 7000 kg | 3 m³ | 9350 mm | 2150 mm | 2252 mm | 165 kw | Diesel Engine | down |
| FKWJ-4 | 8000 kg | 4 m³ | 9400 mm | 2500 mm | 2300 mm | 170 kw | Diesel Engine | down |
| FKWJ-6 | 14000 kg | 6 m³ | 10502 mm | 2864mm | 2545mm | 256 kw | Diesel Engine | down |
| FKWJ-0.6E | 1200 kg | 0.6 m³ | 4960 mm | 1150 mm | 1760 mm | 30 kw | Electric Motor | down |
| FKWJ-1E | 2000 kg | 1 m³ | 5710 mm | 1300 mm | 1920 mm | 45 kw | Electric Motor | down |
| FKWJ-2E | 4000 kg | 2 m³ | 7130 mm | 1840 mm | 1964 mm | 75 kw | Electric Motor | down |
| FKWJ-3E | 6000 kg | 3 m³ | 8600 mm | 2160 mm | 2760 mm | 90 kw | Electric Motor | down |
