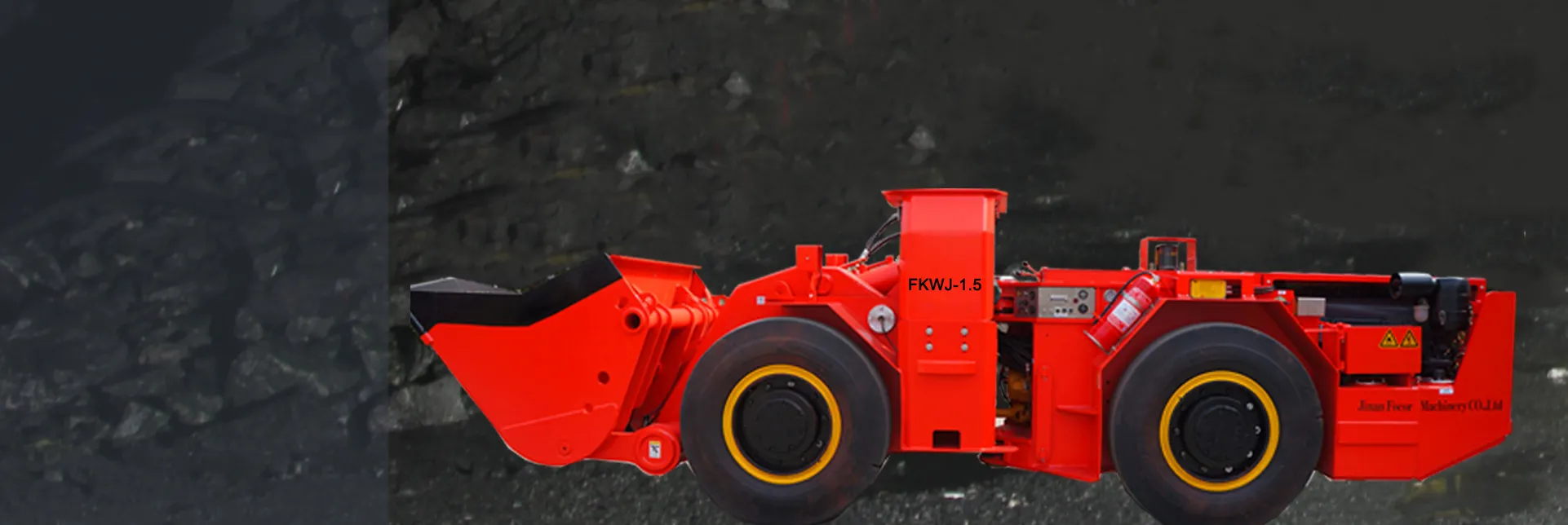

FKWJ-1.5 is a reliable 3 ton Underground Diesel Loader .Underground diesel loaders are designed with a high-strength steel frame and feature a heavy-duty, all-mechanical powertrain. It has the characteristics of compact structure, convenient operation, low energy consumption, low noise, high protection level, good power performance, low operating cost and high production efficiency. It is a new type of equipment for small and medium-sized underground mines or mine renovation and upgrading.
The FKWJ-1.5 underground miningloaderoffers high payload capacity while operating efficiently in height-restricted mines. Thanks to proven engine technology, this workhorse loader delivers high productivity in hard rock conditions.
FKWJ-1.5 Underground loader is specifically designed for very limited headings, while maintaining high productivity. Our configuration of the FKWJ-1.5 scooptram is a German Deutz F6L912 diesel engine. Efficient and powerful Germany DEUTZ F6L912 engine, which delivers maximum tramming and loading performance in the most demanding mining applications.Complete system integration of the engine and transmission to ensure fuel efficiency and smooth operation. The torque converter is configured with American DANA C272 single-stage two-part. The axle is equipped with rigid planetary transmission shafts with non-spin and limited slip differentials.
FKWJ-1.5 underground mining diesel loader is an scooptram suitable for mine roadway section (excavation and other small roadway materials shoveling, transportation and unloading, which meets the requirements of mine safety certification. The technical level of the rated bucket capacity of 1.5m3 has reached the international advanced level.
FKWJ-1.5 scooptram is our medium underground loader with 63kw engine power, it brings maximum production capability to smaller mines. Productivity is enhanced thanks to a smaller turning circle compared to competitive machines. It offers a larger fuel tank so it can run longer between refilling, and superior bucket reach and bucket dump for better loading and faster emptying. An operator favorite, the FKWJ-1.5 scooptram features excellent loaded weight distribution, ride control and seat suspension for maximum comfort.
Advantage
1. Provide overseas installation services;
2. Smart boom geometry and superior hydraulic power for fast bucket fill
3. High-quality cab ergonomics design ensures operator comfort
4. State-of-the-art engine technology

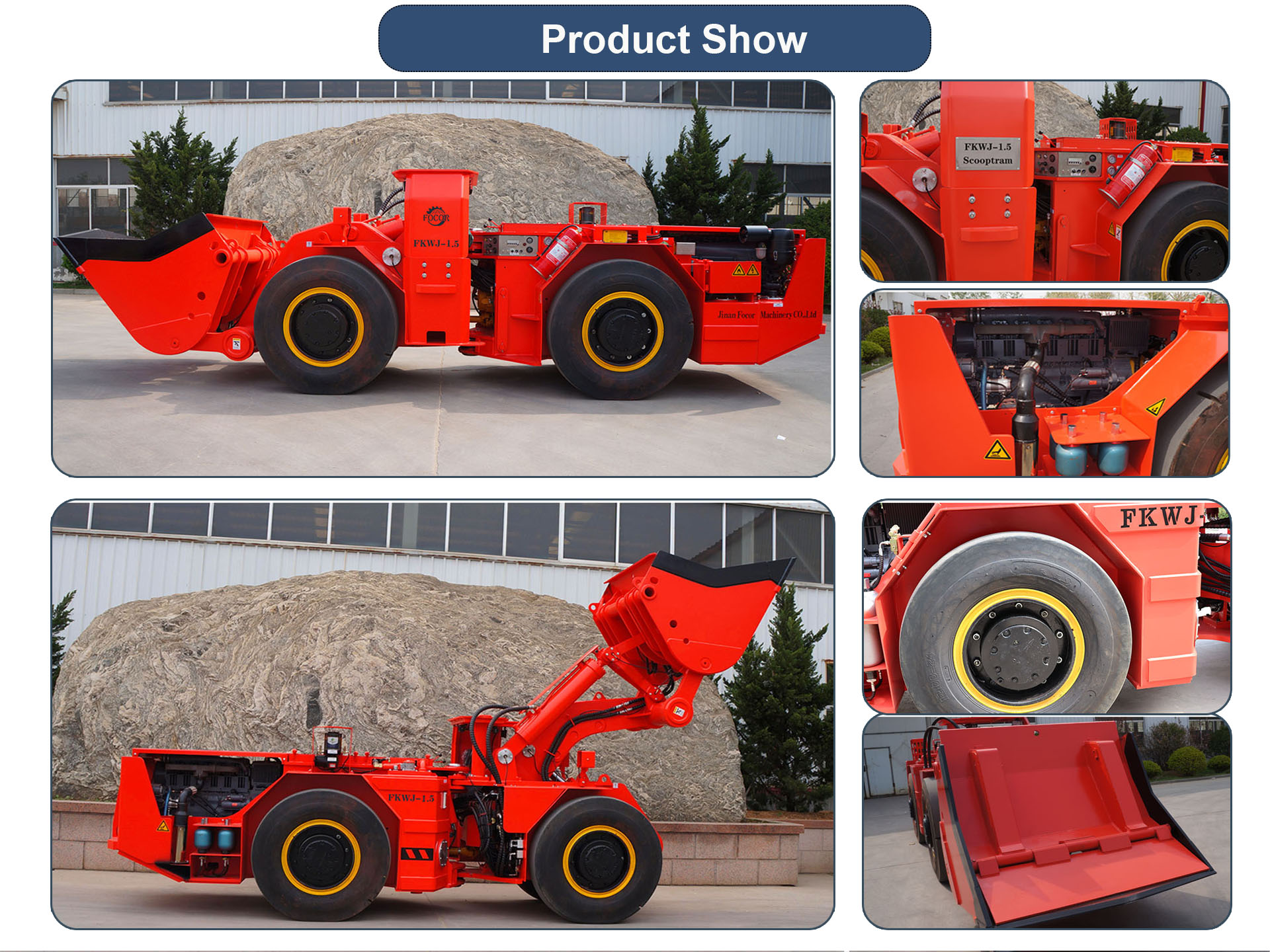

Detail Photos
General Parameter | Loader Weight & Capacity | |||
Rated capacity | 3000 kg | Scooptram weight | 11500 kg | |
Length(bucket down) | 7000 mm | Load weight | 14500 kg | |
Length(bucket up) | 6734 mm | Traveling performance | ||
Width(bucket) | 1680 mm | 1 shift forward/backward | 3.8 km/h | |
Width(frame) | 1450 mm | 2 shift forward/backward | 12 km/h | |
Height(cabin) | 2020 mm | 3 shift forward/backward | 20 km/h | |
Bucket volume | 1.5 m³ | Grade ability | 12%(load) | |
Lifting height | 3523 mm | Max. Traction | 85 KN | |
Discharging height | 1453 mm | Max. Shovel | 70 KN | |
Min. Discharging distance | 890 mm | Tyre pressure | 0.6-0.7 MPa | |
Discharging angle | 40° | Diesel Engine | ||
Wheelbase | 2540mm±15mm | Brand | Germany DEUTZ | |
Min. Ground clearance | 272mm | Model | F6L912 | |
Departure angle | 20° | Type | Air cooling | |
Steering angle | left/right 41° | Rated Power | 63KW/2300rpm | |
Rear axle swing | ±6°- ±8° | Rated Torque | 243Nm/2300rpm | |
Min. Turning radius | inner 2670 mm | Max. Torque | 275Nm/2300rpm | |
Min. Turning radius | Outer 4729 mm | Remarks | Original Germany Deutz Brand | |
Torque Converter | Shift Transmission | |||
Brand | American DANA | Brand | American DANA | |
Model | C272 | Model | R32421 | |
Type | Single stage two components with hydraulic pump drive | Shift | Power shift (3 shifts)forward+backward withEmergency brake | |
Axle | Driver Cabin | |||
Brand | China | Reinforced with 6mm steel panel | ||
Type | Rigid planetary transmission axlewith NON-SPIN & anti-slip differential | Side-seat layout with good vision | ||
Bucket | Control system | |||
Material | Manganese steel | Manual control | YES | |
Ejector Bucket | For optional | Remotor control | For optional | |
Lubrication system | Fire system | |||
Manual lubrication | YES | Manual Fire extinguisher | YES | |
Centralized lubrication | For optional | Centralized Fire extinguisher | For optional |
ROPS/FOPS cabin or canopy with ergonomic controls, clear visibility and automatic fail-safe features. By focusing on safety and operator comfort, we reduce risk and maximize uptime.
Maximum productivity : With the FKWJ-1.5 Scooptram's high lift capacity, load-sensing hydraulics, traction control and intelligent rig control, you can achieve more tons of load per hour.
High ramp speeds, fast bucket fill and high lift for best-in-class production performance .
Download
PRODUCT | PAYLOAD | BUCKET | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
FKWJ-0.6 | 1200 kg | 0.6 m³ | 4910 mm | 1150 mm | 1825 mm | 58 kw | Diesel Engine | down |
FKWJ-1 | 2000 kg | 1 m³ | 5700 mm | 1300 mm | 1920 mm | 58 kw | Diesel Engine | down |
FKWJ-2 | 4000 kg | 2 m³ | 7060 mm | 1500 mm | 2009 mm | 84 kw | Diesel Engine | down |
FKWJ-3 | 7000 kg | 3 m³ | 9350 mm | 2150 mm | 2252 mm | 165 kw | Diesel Engine | down |
FKWJ-4 | 8000 kg | 4 m³ | 9400 mm | 2500 mm | 2300 mm | 170 kw | Diesel Engine | down |
FKWJ-6 | 14000 kg | 6 m³ | 10502 mm | 2864mm | 2545mm | 256 kw | Diesel Engine | down |
FKWJ-0.6E | 1200 kg | 0.6 m³ | 4960 mm | 1150 mm | 1760 mm | 30 kw | Electric Motor | down |
FKWJ-1E | 2000 kg | 1 m³ | 5710 mm | 1300 mm | 1920 mm | 45 kw | Electric Motor | down |
FKWJ-2E | 4000 kg | 2 m³ | 7130 mm | 1840 mm | 1964 mm | 75 kw | Electric Motor | down |
FKWJ-3E | 6000 kg | 3 m³ | 8600 mm | 2160 mm | 2760 mm | 90 kw | Electric Motor | down |
