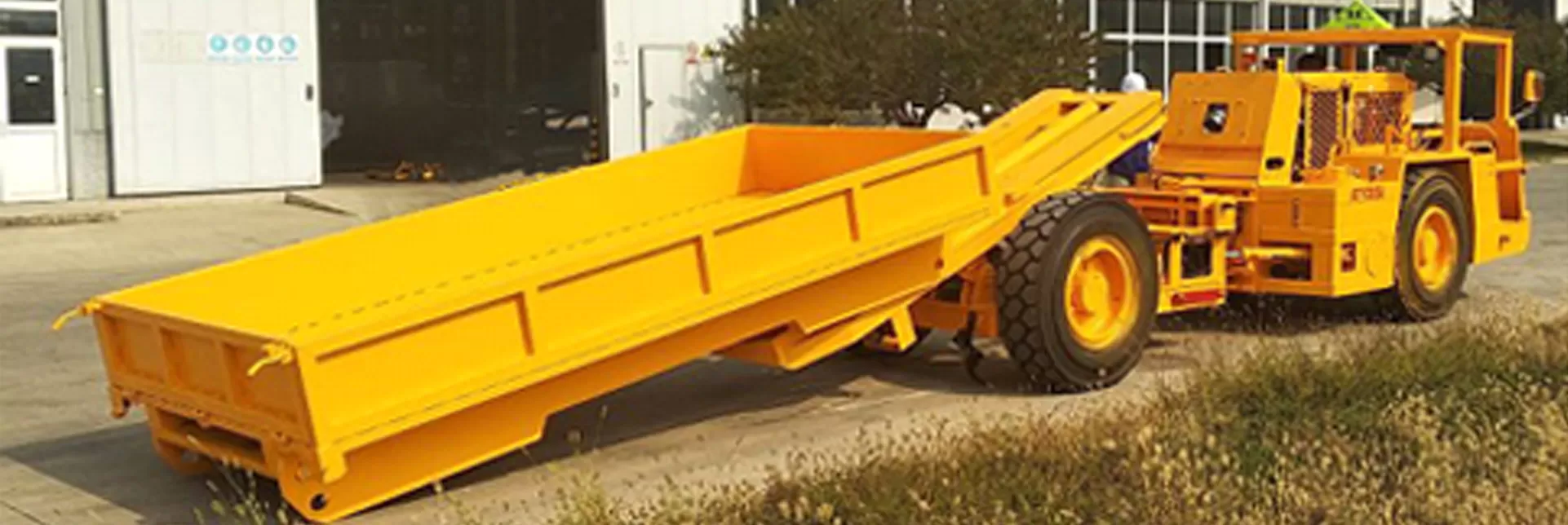

Underground mining material tool trucks

Underground mining material tool trucks are vehicles specially designed for material handling and tool transportation in underground mining environments. These vehicles need to fit into the complex and confined spaces of underground mines and possess a range of special features to ensure safe and efficient transportation.
Contact Us

Underground mining material tool trucks are vehicles specially designed for material handling and tool transportation in underground mining environments. These vehicles need to fit into the complex and confined spaces of underground mines and possess a range of special features to ensure safe and efficient transportation.

The following are the features and functions that underground mining material tool trucks may have:
Compact design: Due to limited underground space, underground mining material tool trucks often feature compact designs to fit into narrow passages and work areas.
Electric drive: To reduce emissions and improve safety, some underground material tool trucks are powered by electricity, usually battery-powered. Such designs also help reduce air pollution in underground mines. High torque and off-road performance: Due to the complex geological conditions of underground mines, material tool trucks need to have good off-road performance and high torque to cope with different terrains and inclinations.
Safety features: The particularity of the underground environment requires material tool trucks to have high safety features, such as explosion-proof design, emergency braking systems and protective structures to reduce the risk of accidents.
Load capacity: Considering the weight of the ore and materials, underground material tool trucks usually need to have sufficient load capacity to ensure effective material handling.
Automation and remote control: Some underground material tool trucks may be equipped with automation systems or remote control technology to improve control accuracy and safety.

Main DimensionsEngine
Payload5000kgManufacturerCUMMINS
Operating weight9500kgTypeQSB4.5-C1300
Fully loaded14500kgStructural featuresWater cooled diesel engine
Length7627mmMax. power97kW/2000rpm
Height2256mmMax. torque900Nm/1500rpm
Width1863mmAir intake systemDry air filter
Transmission SystemExhaust systemDOC Exhaust gas catalyst/silencer
Torque converter and transmissionDANAStarter, power/voltage  4.8 kW/24V
Manufacturer1201FT20000 seriesAlternator, voltage/ampere24V/70A
TypePower shift transmission with 3Exhaust qualityU.S.EPA Tier 3and EUROPE Stage III
Structural featuresforward and 3 reverse gears eachWheels and Tires
AxlesTires size10.00-20 TT
ManufacturerDANAFilling pressure5.5bar
Type112Steering system
Structural featuresRigid planetary axles with differential gearTypeSteering wheel control
BrakesSteering angle±40°
Service brakeLCBTurning radiusInner 4000± 200mm
Parking brake/emergency brakeSpring applied, hydraulic
 release (SAHR)
Outer 6193±200mm
Structural featuresFully enclosed, oil cooled
multiple wet discs at each axle
Hydraulic System
Electrical equipmentHydraulic Steering control unitDouble gear pump
Operating voltage24VHydraulic steering gearLoad sensor steering gear
Battery2×12V/120AhSystem pressure15MPa
Lighting systemSteering cylinder2
Front lights(LED)2×27WCabin
Rear lights (LED)2×27WOperating areaEnclosed cabin, Forward seating
Roof light(LED)1×27WSeatsAdjustable seat
Warning light1Structural features

Froward driving position throttle and brake,

 with data display, fault alarm

Safety FeaturesMeters/gauges

Tachometer, Pre-heat indicator,

 Engine oil temperature gauge,

Brake pressure gauge,

transmission pressure gauge,

Brakepressure low warning light,

engine oil pressure warning light

CabinSAE heavy duty canopy (ROPS/FOPS)Filling Volumes
Fire protection devicePortable manual fire extinguisherFuel tank110L
Starting deviceMachine starts on transmission neutral positionHydraulic tank140L
Reversing alarm112dBDiesel engine oil pan11L


Torque converter/power shift24L


Front axle differential gear9L


Front axle planetary gear2x1.3L


Rear axle differential gear6L


Rear axle planetary gear2x1.3L



1

Enclosed cabin, Forward seating

2

SAE heavy duty canopy (ROPS/FOPS)

3

Machine starts on transmission neutral position

Download

MODELMAIN FEATURLENGTHWIDTHHEIGHTPOWERTYPESPEC SHEET
FKYR22Capacity: 208250 mm2280 mm2400 mm97 kwDiesel Enginedown
FKJP205Scissor Lifting8095 mm1860 mm2343 mm97 kwDiesel Enginedown
FKYB205Arm Lifting8745 mm1860 mm2490 mm97 kwDiesel Enginedown
FK206DRated loader: 10057 kg7495 mm1863 mm2400 mm97 kwDiesel Enginedown
FKPS-100Breaker: SB507500 mm1800 mm3300 mm107 kwDiesel Enginedown
FKQM-45Breaker: SB307300 mm1420 mm1920 mm42 kwDiesel Enginedown
