Face Drill Rig

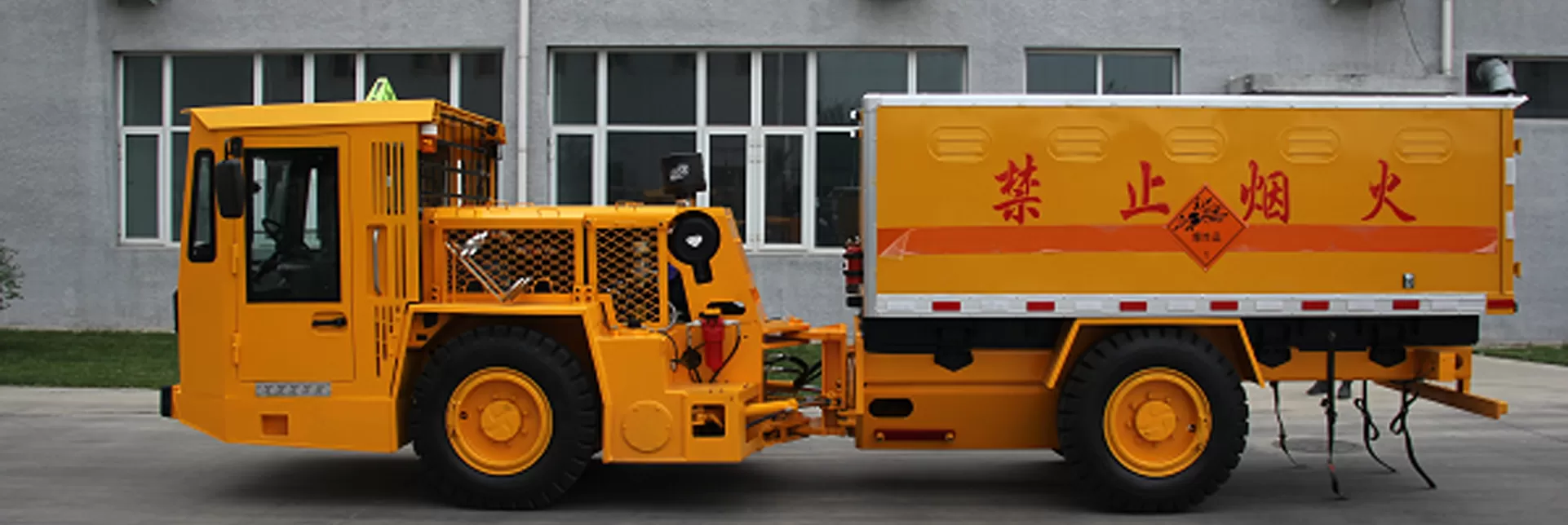

OverviewIn mine blasting operations, special vehicles are usually used to transport explosives to the blasting site. These vehicles may be called demolition trucks, demolition vehicles, or explosive charge trucks. The design and functionality of these vehicles are designed to ensure the safe transport and loading of explosives to the mine face or locations where blasting is required.
| Main Dimensions | Engine | ||
| Door opening type | Double doors in rear, single door on right front side | Manufacturer | CUMMINS |
| Length | 7800mm | Type | QSB4.5-C1300 |
| Height | 2330mm | Structural features | Water cooled diesel engine |
| Width | 1863mm | Max. power | 97kW/2000rpm |
| Vehicle width | 1863mm | Max. torque | 900Nm/1500rpm |
| Transmission System | Air intake system | Dry air filter | |
| Torque converter and transmission | DANA | Exhaust system | DOC Exhaust gas catalyst/silencer |
| Manufacturer | 1201FT20000 series | Starter, power/voltage | 4.8 kW/24V |
| Type | Power shift transmission with 3 | Alternator, voltage/ampere | 24V/70A |
| Structural features | forward and 3 reverse gears each | Exhaust quality | U.S.EPA Tier 3and EUROPE Stage III |
| Axles | Wheels and Tires | ||
| Manufacturer | DANA | Tires size | 10.00-20 TT |
| Type | 112 | Filling pressure | 5.5bar |
| Structural features | Rigid planetary axles with differential gear | Steering system | |
| Brakes | Type | Steering wheel control | |
| Service brake | LCB | Steering angle | ±40° |
| Parking brake/emergency brake | Spring applied, hydraulic release (SAHR) | Turning radius | Inner 4000± 200mm |
| Structural features | Fully enclosed, oil cooled multiple wet discs at each axle | Outer 6193±200mm | |
| Electrical equipment | Hydraulic System | ||
| Operating voltage | 24V | Hydraulic Steering control unit | Double gear pump |
| Battery | 2×12V/120Ah | Hydraulic steering gear | Load sensor steering gear |
| Lighting system | System pressure | 15MPa | |
| Front lights(LED) | 2×27W | Steering cylinder | 2 |
| Rear lights (LED) | 2×27W | Cabin | |
| Roof light(LED) | 1×27W | Operating area | Enclosed cabin, Forward seating |
| Warning light | 1 | Seats | Adjustable seat |
| Safety Features | Structural features | Froward driving position throttle and brake, with data display, fault alarm | |
| Cabin | SAE heavy duty canopy (ROPS/FOPS) | Meters/gauges | Tachometer, Pre-heat indicator, Engine oil temperature gauge, Brake pressure gauge, transmission pressure gauge, Brakepressure low warning light, engine oil pressure warning light |
| Fire protection device | Portable manual fire extinguisher | Filling Volumes | |
| Starting device | Machine starts on transmission neutral position | Fuel tank | 110L |
| Reversing alarm | 112dB | Hydraulic tank | 140L |
| Diesel engine oil pan | 11L | ||
| Torque converter/power shift | 24L | ||
| Front axle differential gear | 9L | ||
| Front axle planetary gear | 2x1.3L | ||
| Rear axle differential gear | 6L | ||
| Rear axle planetary gear | 2x1.3L | ||
Safety Design: These vehicles usually have an explosion-proof design to prevent accidents during transportation and loading of explosives.
Precision Control: Vehicles may be equipped with sophisticated control systems to ensure that explosives are loaded at the exact location and time.
Capacity: The vehicle may have been designed with the need to transport large quantities of explosives in mind, with a corresponding capacity.
Download
| MODEL | MAIN FEATUR | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FKYR22 | Capacity: 20 | 8250 mm | 2280 mm | 2400 mm | 97 kw | Diesel Engine | down |
| FKJP205 | Scissor Lifting | 8095 mm | 1860 mm | 2343 mm | 97 kw | Diesel Engine | down |
| FKYB205 | Arm Lifting | 8745 mm | 1860 mm | 2490 mm | 97 kw | Diesel Engine | down |
| FK206D | Rated loader: 10057 kg | 7495 mm | 1863 mm | 2400 mm | 97 kw | Diesel Engine | down |
| FKPS-100 | Breaker: SB50 | 7500 mm | 1800 mm | 3300 mm | 107 kw | Diesel Engine | down |
| FKQM-45 | Breaker: SB30 | 7300 mm | 1420 mm | 1920 mm | 42 kw | Diesel Engine | down |
