Introduction of underground loader

1.  Introduction:
   A underground loader  is a shovel transportation machine that uses a bucket to shovel soil and loads the broken soil into the bucket for transportation. It can complete shoveling, loading, transporting, unloading, filling in layers, and partial crushing. Real comprehensive work. It is suitable for leveling site work of railways, roads, water conservancy, electric power and other projects. The scraper has the advantages of simple operation, not restricted by terrain, able to work independently, fast traveling speed, and high production efficiency. It is suitable for soil types one to three. If shoveling soil above three types, the soil needs to be loosened in advance. The scrapers widely used in the market are divided into two types: internal combustion scrapers and electric scrapers. Internal combustion scrapers are suitable for well-ventilated working environments and are flexible and efficient; electric scrapers are more environmentally friendly and have no impact. pollute. Its characteristics, structure, classification, development achievements, operating processes, safety regulations, etc. are introduced in detail.
   2. Underground electrical loader

   Scooptrams have two different driving powers, diesel engine and electric motor. The diesel LHDs are designed with flexible moving capability, and electric LHDs could supply better power with lower emissions. Today we mainly talk about underground electric loader.We have 5 models of underground electric loader. Below we will introduce the characteristics of our underground electric loader one by one.

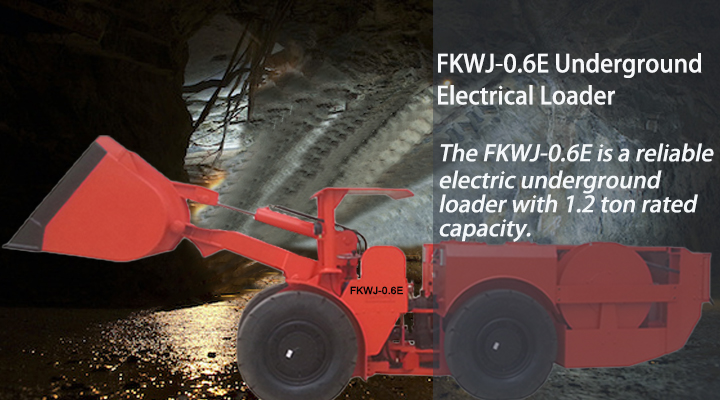

   2.1 FKWJ-0.6E underground electric loader

   The Underground Electric loader is the result of research on our most popular underground loader. It is an efficient, powerful and reliable machine designed to meet the needs of the underground mining industry for greater payloads, faster loading and reduced emissions. The use of electric drive components can reduce fuel consumption and increase productivity. The biggest benefit is that electric scrapers are more cost-effective.

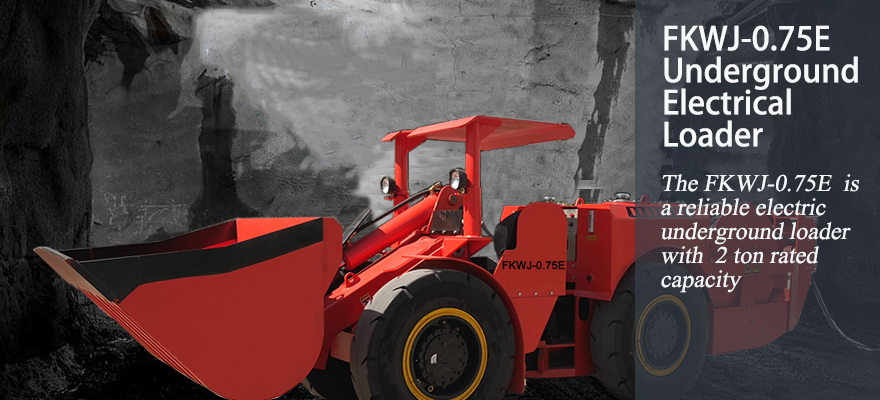

2.2 FKWJ-0.75E underground electric loader

The hydraulic pump of FKWJ-0.75E underground electric loader is sauer pv22. The hydraulic motor is equipped with sauer mv22. The accessories of all our equipment are international famous brands. Electric drive systems have fewer moving parts and parts than traditional torque converters and mechanical transmissions, extending maintenance intervals compared to mechanical transmissions.

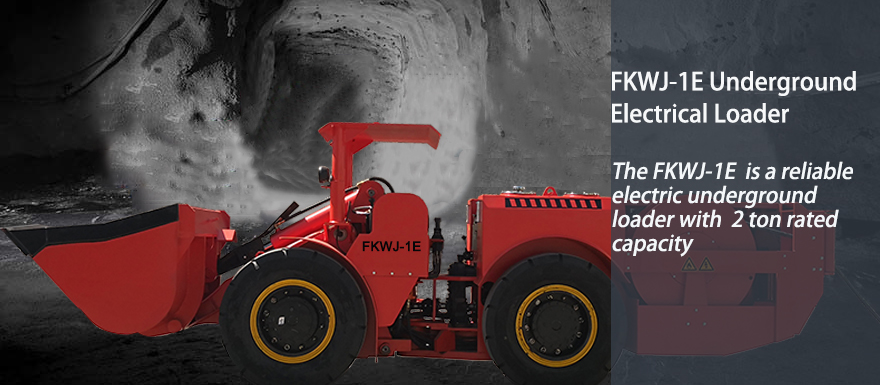

2.3 FKWJ-1E underground electric loader

The rated capacity of our FKWJ-1E underground electric loader is 2 tons. The weight of our entire electric loader is tons, and our maximum loading capacity is 9 tons. Our bodies are all welded using welding techniques. The hydraulic pump is a fully reversible variable piston pump configured by Sauer pv22. Our hydraulic motor is a sauer mv22 imported Variable piston motor. Our hydraulic system comes with manual hydraulic pressure.

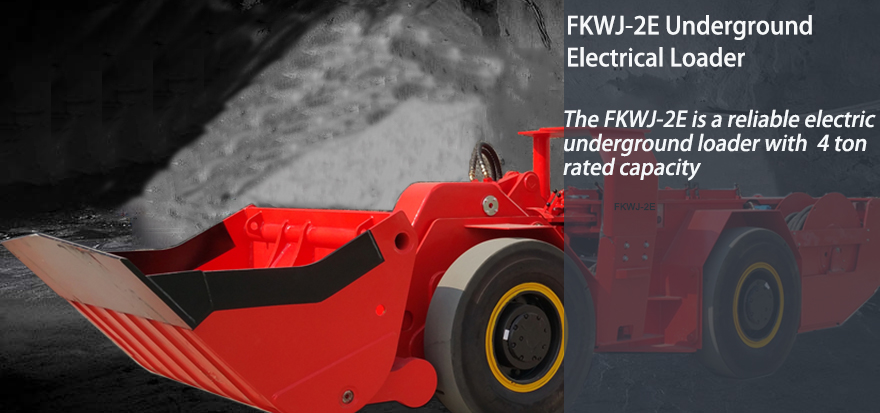

2.4 FKWJ-2E underground electric loader

FKWJ-2E underground electric loader is mainly used for underground mine shoveling .The power system is driven by a 75KW electric motor, hydraulically controlled variable pump, quantitative motor, front and rear axle reducers, and four-wheel drive. The front and rear of the fuselage adopt slewing bearing coupling to oscillate.

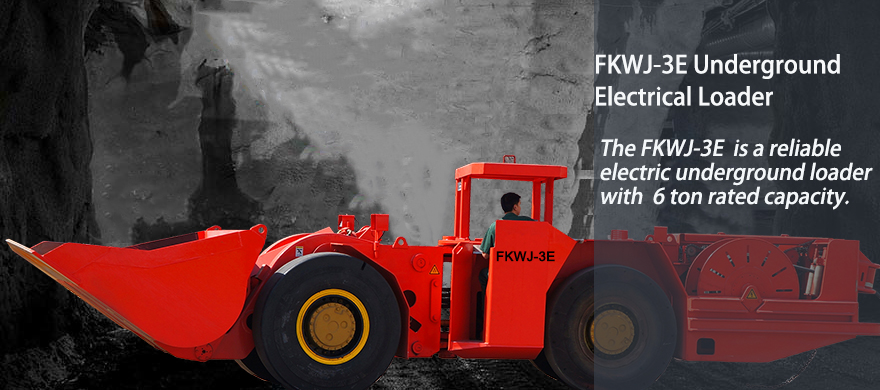

2.5 FKWJ-3E underground electric loader

The mechanical body weight of FKWJ-3E is 17 tons. The maximum load capacity of our FKWJ-3 underground electric loader is 23 tons. Our rated capacity is 6 tons. The electric motor is HM2-280M-4, and the hydraulic pump is Parker. The drive axle is American DANA. Rigid planetary transmission axle with NON-SPIN & anti-slip differential. The brand of torque converter is American DANA C273. Single stage two components, with hydraulic pump drive. The brand of gearbox is 15.7HR36000. The feature of Shift is Single stage two components, with hydraulic pump drive.
