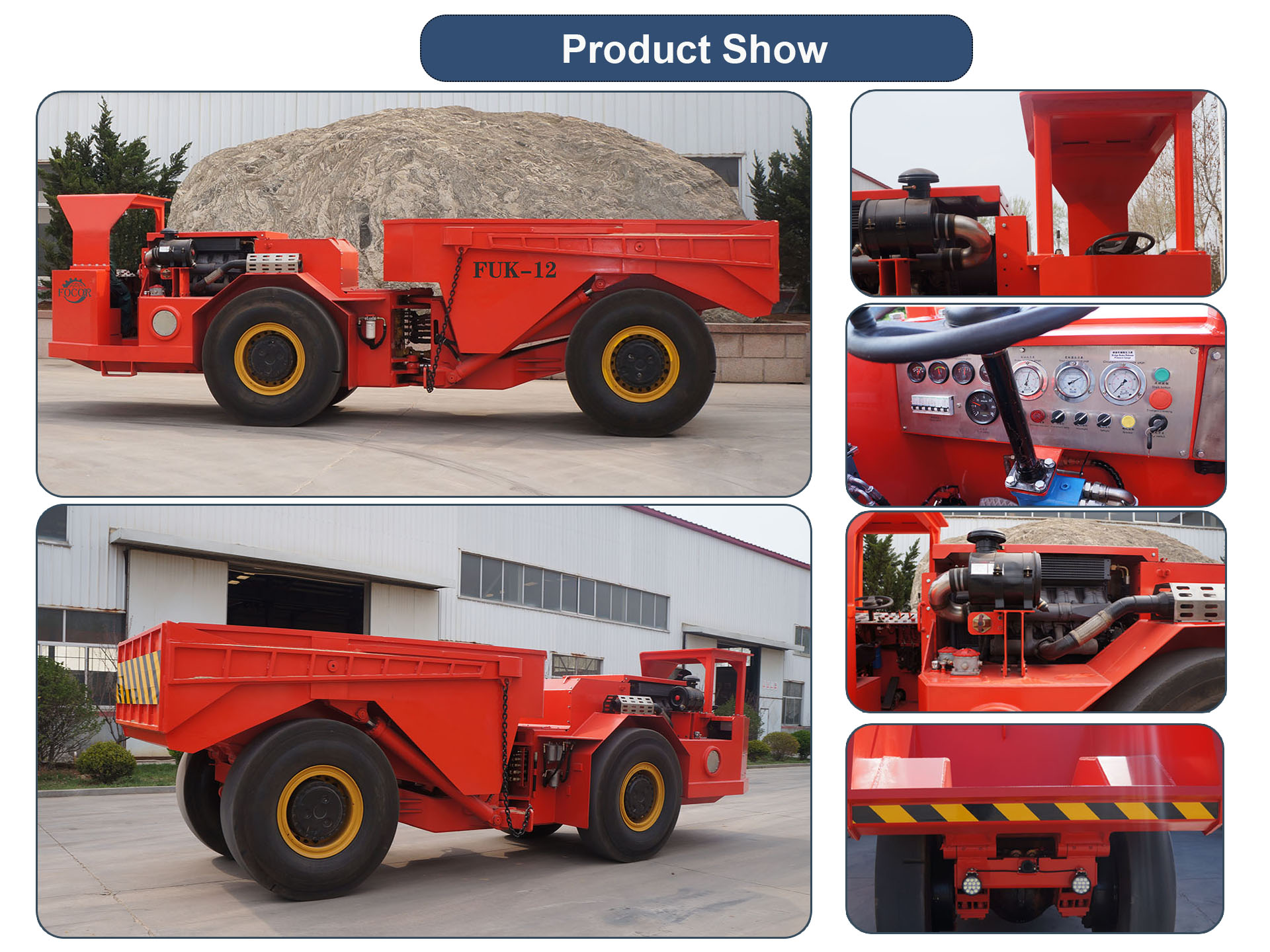

Introducing the 12-ton underground truck

Nov. 08, 2024

Introducing the 12-ton underground  truck

The 12-ton underground  truck is a special vehicle designed for underground mine transportation. It is mainly used to transport ore efficiently and safely in narrow mine tunnels. This equipment usually has a high load capacity, good maneuverability and a reliable safety assurance system, and plays an important role in mining and underground engineering construction. The following is a detailed introduction to the 12-ton underground ore truck, including its working principle, key performance characteristics, applicable scenarios, operation and maintenance, and advantages.

Working principle


  1. The working principle of the 12-ton underground  truck is based on a design that combines hydraulic transmission and mechanical transmission. The vehicle is powered by an internal combustion engine or an electric motor, and the front and rear wheels are driven by a hydraulic system to complete ore loading, transportation and unloading. The operator can easily complete operations such as lifting the car and tilting unloading by controlling the hydraulic system. In addition, in order to adapt to the steep slopes and narrow paths in the underground environment, the vehicle is usually equipped with advanced braking systems and steering control systems to ensure the safety and stability of the transportation process.

    2. Key performance characteristics
    Strong load capacity: The design load of the mine car is 12 tons, which can efficiently carry a large amount of ore, effectively reduce the number of transportation times, and improve production efficiency.

    Compact body design: The body width of underground ore transporters is small, usually around 2 to 2.5 meters, so that they can pass through narrow mine tunnels. In addition, the body height is low, which is suitable for low mine tunnels and ensures safety.

    Powerful power system: Most underground ore transporters use diesel engines or electric motors as power sources. Diesel engines are suitable for long-term and high-intensity transportation tasks, while electric motors are suitable for poorly ventilated underground environments due to their zero-emission characteristics, reducing pollution.

    Hydraulic control system: The hydraulic system is used to achieve lifting, tilting and braking functions. Its precise controllability enables operators to operate more flexibly in the mine environment, especially to achieve accurate unloading of ore on complex terrain.

    Efficient braking system: The mine car is equipped with a multi-stage braking system, which usually includes hydraulic braking, air brake system and manual brake device, ensuring that the mine car can stop reliably on various terrains, especially on steep slopes or slippery roads with excellent safety.

    Durability and reliability: The chassis, frame and transmission system of the vehicle are made of high-strength steel materials, which can withstand long-term wear and impact in the harsh environment of the mine.

    Humanized cockpit design: The cockpit is generally equipped with shock-absorbing seats, air conditioning, sound insulation materials and good vision design, providing the operator with a comfortable and safe working environment, which helps to reduce driving fatigue.

    3. Applicable scenarios
    The 12-ton underground mine truck is mainly suitable for the following scenarios:
    Mining: Transporting ore and slag in underground tunnels of metal and non-metal mines, and can shuttle freely in narrow and low mines.
    Tunnel engineering: Used for waste removal during tunnel excavation, especially suitable for transportation in tunnels with inconvenient transportation.
    Underground engineering construction: In environments where large amounts of materials need to be transported, such as underground infrastructure construction and nuclear waste storage, this equipment can also provide reliable material transportation services.
