Introducing 15 Ton underground truck
May. 14, 2024
15 TON Underground Mining Truck
The weight of the FUK-15-ton machine is 14 tons, and the load capacity is 30 tons. The cab is made of reinforced 6mm steel plate, which is arranged horizontally with high safety and has good vision. The engine of choice is a Germany DEUTZ BF6M1013. The service brake adopts a fully enclosed multi-disc wet hydraulic brake, and the parking brake adopts a spring brake. The composition of our hydraulic system includes working system, steering system, braking system, oil supplement acceleration system. Control system Our standard configuration is manual control system. You can also choose remote control with video images. Our buckets are designed with high temperature manganese steel and can be moved buckets.
15 Ton Haul Dump Truck Technical Parameter
| General Parameter | Loader Weight & Capacity | ||
| Rated capacity | 15000kg | Truck weight | 15800 kg |
| Length | 7678mm | Loading weight | 30800 kg |
| Width | 2250mm | Traveling performance | |
| Height(cabin) | 2410mm | 1 shift forward/backward | 5 km/h |
| Bucket volume | 7.5 m³ | 2 shift forward/backward | 11 km/h |
| Discharging height | 4212mm | 3 shift forward/backward | 17.1 km/h |
| Discharging angle | 62° | 4 shift forward/backward | 23.5 km/h |
| Bucket lifting time | 9.1 S | Grade ability | 25% (load) |
| Bucket down time | 8.2 S | Max. Traction | 160 KN |
| Wheelbase | 3710mm | Diesel Engine | |
| Min. Ground clearance | 400mm | Brand | Germany DEUTZ |
| Steering angle | left/right 40° | Model | BF6M1013 |
| Turning angle | ±7° | Type | Water cooling |
| Min. Turning radius | inner 4850mm | Rated Power | 165KW/2300rpm |
| Min. Turning radius | Outer 7660mm | Remarks | Original Germany Deutz Brand |

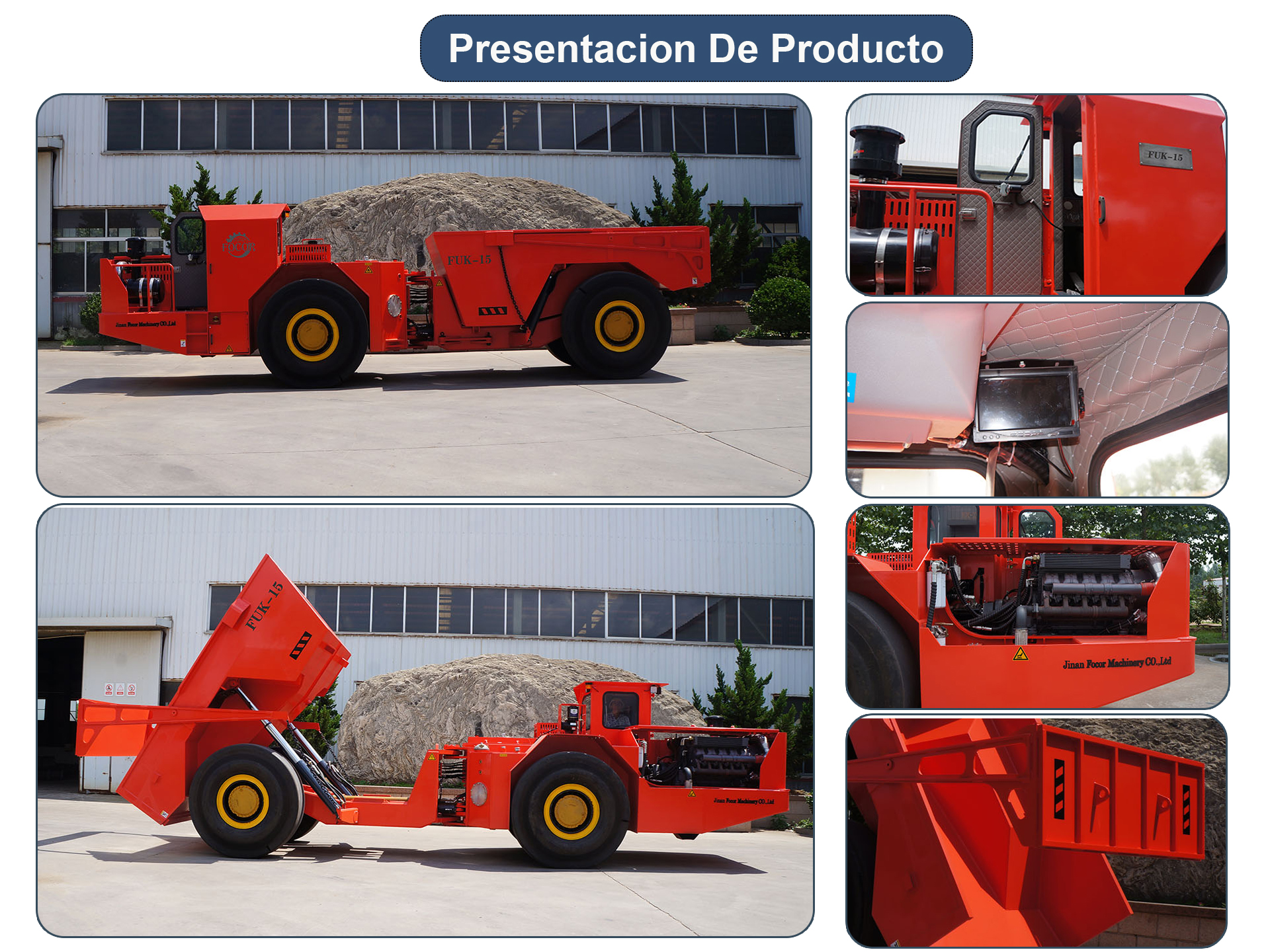

15 Ton Underground Detail Photo
