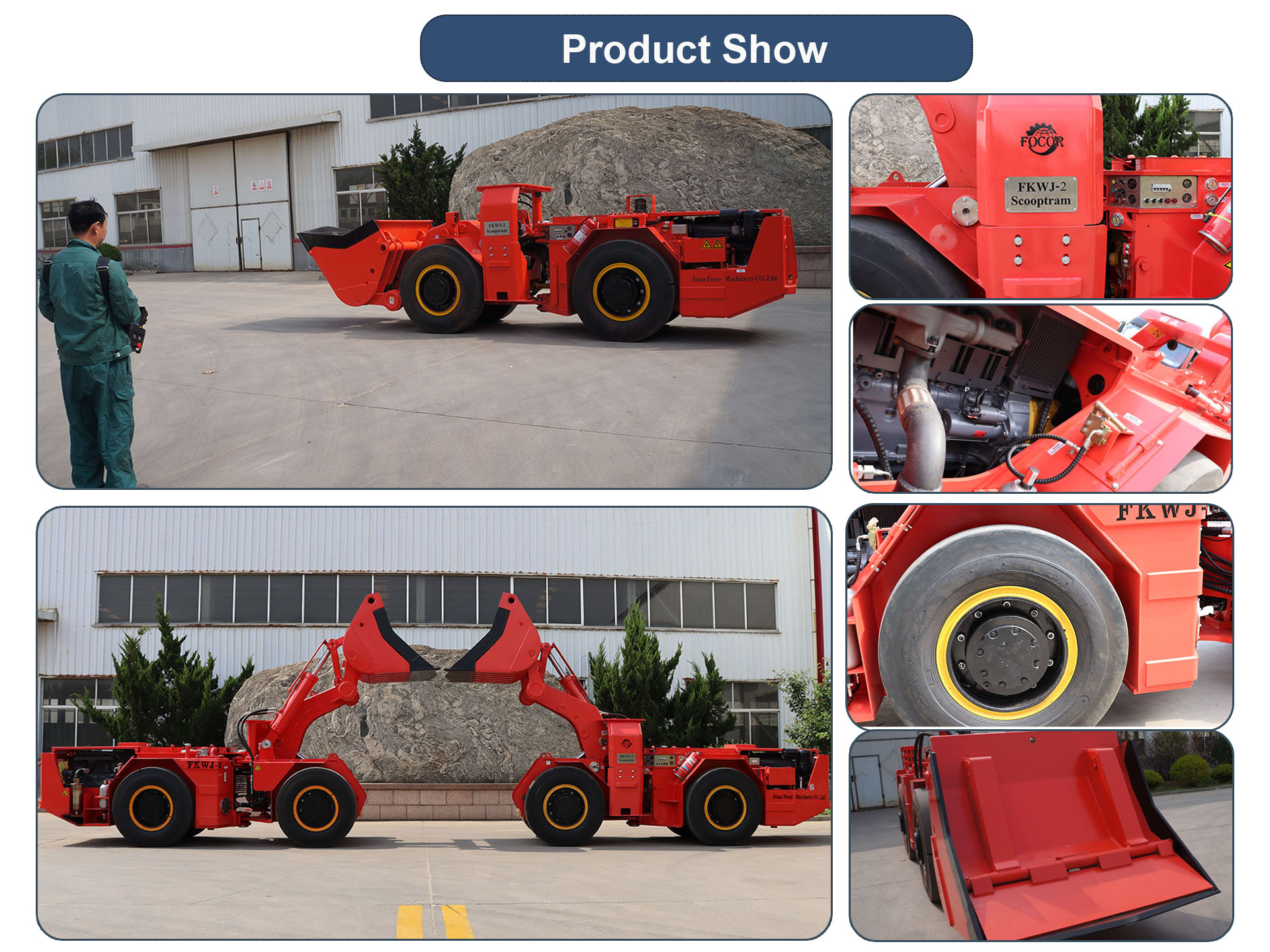

Introduce underground 2 cubic scraper

Introduce 2 cbm underground diesel loader

Underground 2 cubic scraper (also known as underground loader, underground loader or LHD, Load-Haul-Dump) is a kind of mechanical equipment widely used in underground mines, tunnel construction and other underground engineering operations. Its main function is to shovel, transport and unload underground materials (such as ore, rock, etc.) to the designated location. Compared with other heavy machinery, underground scraper has a smaller body and stronger flexibility, and can operate in low and narrow underground environments. Therefore, it is one of the important equipment in modern underground mining and tunneling projects.

Underground loader structure and basic parameters

Underground 2 cubic scraper usually consists of several main components. The following are some key components and technical parameters of the equipment:

Power system:The power source of underground 2 cubic scraper can be an internal combustion engine (diesel engine) or an electric motor. Internal combustion engine scrapers are highly flexible and suitable for underground working environments without power supply, while electric scrapers are increasingly favored by mines with high environmental protection requirements due to their advantages of no exhaust emissions and low noise.

Bucket:The scraper is equipped with a bucket capacity of 2 cubic meters, which can shovel about 2 cubic meters of ore or materials at a time. The bucket is made of high-strength alloy steel, which can withstand high-intensity impact, and realizes precise lifting and tilting functions through the hydraulic system to ensure efficient loading and unloading.

Hydraulic system:The hydraulic system of the scraper is used to control the lifting, tilting, steering and other operations of the bucket. The hydraulic pump provides power so that the bucket can accurately perform various work tasks. The advanced hydraulic system enables the equipment to still achieve smooth operation in a narrow space, ensuring operating efficiency.

Body structure:The body of the underground 2 cubic scraper is compact and has a low body height to adapt to the narrow and low working environment of the mine. It usually adopts a mid-articulated frame design, which enables the vehicle to achieve flexible turning and maneuverability in narrow tunnels.

Drive system:The drive system is usually four-wheel drive, which can provide strong traction to cope with the rugged terrain in the mine. At the same time, the scraper is equipped with durable mining tires to cope with the harsh road conditions in the mine.

Safety and operating system:The underground scraper is equipped with a modern cab and safety devices. The cab usually has an anti-rockfall protection device, and is equipped with a comfortable seat and a convenient control system. The operator can accurately control the movement of the scraper through the steering wheel or joystick. The dashboard displays the real-time operating status of the equipment, including oil pressure, hydraulic oil temperature, fuel level, etc., to ensure that the operator is always aware of the status of the equipment.

Maintenance and care

Check the hydraulic system regularly: Ensure that the hydraulic pump and hydraulic oil pipe are in normal working condition to prevent leakage and insufficient pressure.
Replace wearing parts: Parts such as buckets, tires and hydraulic cylinders will wear out after long-term use and need to be checked and replaced regularly.
Check the electrical system: If it is an electric scraper, the battery, cables, etc. should be maintained regularly to avoid failures.
