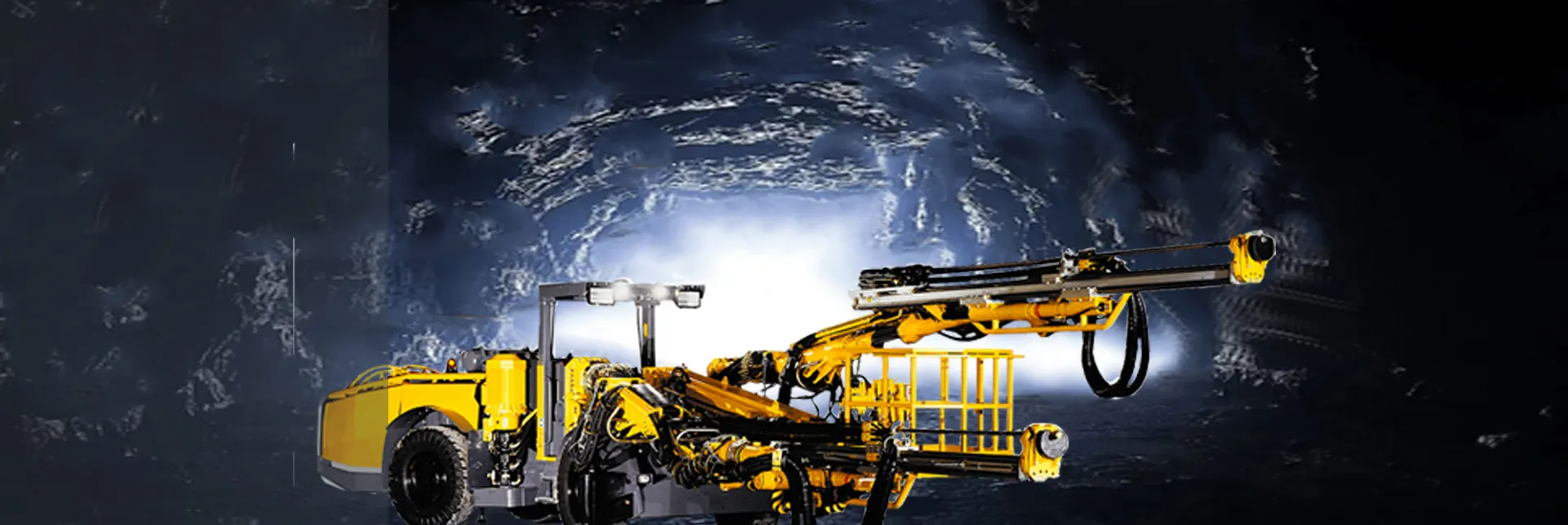

Face Drill Rig
OverviewFK80-2BCDL are modern hydraulic face drilling rigs suitable for medium sized drifts and tunnels with cross sections up to 64 ㎡. The rigs are equipped with a direct control system (DCS) that is robust and reliable. FK80-2BCDL is equipped with a heavy-duty boom and Focor 550 rock drill for optimized productivity. For greater productivity, rig components are crafted for extreme durability, and systems are based on standard parts to make the rig easy and economical to maintain. When you need high performance drilling, you can rely on CYTJ86A2H to safely increase your production.
To increase productivity, rig components have been engineered for extreme durability and the system is based on standard parts, making rig maintenance simple and economical.
In order to improve production efficiency, the components of the drilling rig are made with extremely high durability, and the system is based on standard components, making the drilling rig easy to maintain and economical.

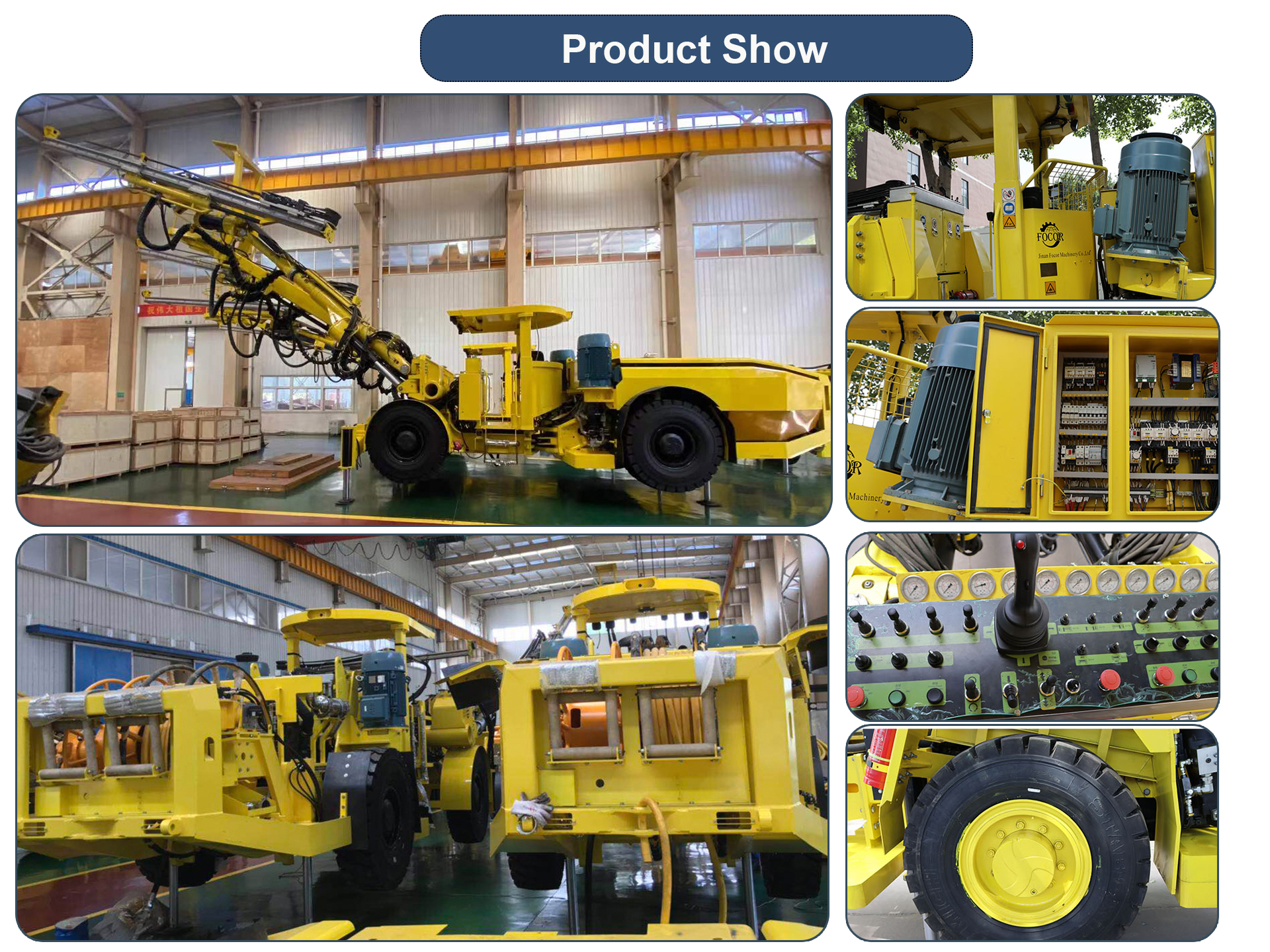

DETAIL PHOTO
| Rock Drill | Control System | |||
| Brand | FOCOR550 | Direct | Electric Control System | |
| Shank adapter | R32 R38 T38 | Hydraulic System | ||
| Impact power | 24 kW | Hydraulic pump | Two separate units | |
| Impact rate | 60-75 Hz | Pump unloaded at start | ||
| Hydraulic pressure | 230bar | System pressure. Max | 200 bar | |
| Rotation motors | Separate rotation | Hydraulic oil tank, volume max | 250 L | |
| Rotation speed | 0-300 rpm | Low oil level indicator including shut down | ||
| Rotation torque | 980 Nm | Oil temperature gauge on oil tank, electronically supervised | ||
| Lub. air consumption | 5 L/s | Electric oil filling pump | ||
| Water consumption | 50 L/min | Filtration | 10 um | |
| Weight | 190 kg | Oil filter indicator | ||
| Feed | Water cooled oil cooler in stainless container | |||
| Brand | HYTL | Mineral hydraulic oil | ||
| Drill rod length | 5525 mm | Two remote-controls | ||
| Total length | 7110 mm | Carrier | ||
| Drill rod length | 4305 mm | Diesel engine | Deutz TCD2013L04 | |
| Total length | 5900 mm | Power rating at 2300 rpm | 120kW | |
| Boom | Torque at 1600 rpm 618 Nm | |||
| Feed extension | 1800 mm | Fixed seat for tramming with safety belt | ||
| Boom extension | 1600 mm | Articulated steering | ±38° | |
| Parallel holding | Complete | Four-wheel drive | ||
| Feed roll-over | 360° | FOPS roof | ||
| Feed dump | 70° | Hydrostatic power steering system | ||
| Max. swinging angle | ±45° | Hydrostatic transmission | Clark 24000 | |
| Air System | Front axle | Dana 114 | ||
| Compressor | High quality | Rear axle | Dana 114 , ±8° oscillation | |
| Capacity max at 9bar | 26 L/s | Front axle Automatic differential lock, limited slip | ||
| Air pressure gauge | Tyres | 14.00 x R24 | ||
| Electrical System | Clearance outside axles | Forward 19° , backward 14° | ||
| Voltage | 380-1000 V | Hydraulic jacks, front | 2 extendable | |
| Total installed power | 158 kw | Hydraulic jacks, rear | 2 | |
| Frequency | 2x75 kW | Service brakes 2 separate circuits (hydraulically applied, fully enclosed wet disc, brakes) | ||
| Starting method | star/delta(380 V- 690 V) direct (1000 V) | |||
| Thermal overload protection for electric motor | Emergency and parking brakes | SAHR | ||
| Percussion hour meter on operator display | Fuel tank, volume | 100 L | ||
| Digital voltmeter / amperage meter in electric cabinet | Electric system | 24 V | ||
| Phase sequence indicator/ Earth fault indicator/Battery charger | Batteries | 2x125 Ah | ||
| Transformer | 8 kVA | Tramming lights | 8 x 70 W | |
| Cable reel, inner / outer diameter, mm | 660/1600mm | Working lights | 2x1000 W | |
| Water System | Illuminated stairs for platform/ brake lights | |||
| Hydraulic driven water booster pump | Central Lubrication System | |||
| Water booster pump max capacity at 15 bar | 250 L/min | Catalyser, silencer, spirit levels | ||
| Min. water inlet pressure, bar | 2 bar | Gradeability at max load on drive wheels | 1:4 | |
| Traming speed on flat ground | >14 km/h | |||
| Traming speed on incline 1:8 | >6 km/h | |||
| Horn, beacon, and reverse alarm | ||||
Advanced PLC control system, telescopic drilling feed, and a FOPS-approved ergonomically designed telescopic protective roof ensures the best production efficiency.
The telescopic feed is easily positioned and steadily stays in place during high impact drilling to help the miners to achieve desired rates in local ground conditions to boost the productivity.
Equipped with patent-wining Focor series hydraulic rock drill, Focor series rock drilling machine has dual-damping system for shock wave absorption and continuous rock contact for high penetration. Lubricated and pressurized surfaces give long service intervals.

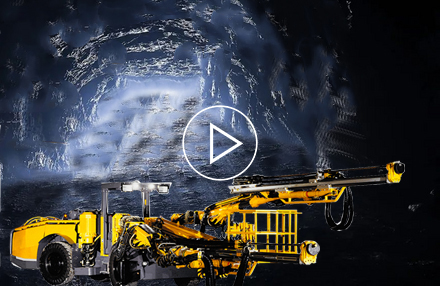

FK80-2BCDL Twin Boom Face Drill Rig
Download
| MODEL | BOOM | LENGTH | WIDTH | HEIGTH | DRILLING SECTION | SHANK | POWER OF DIESEL ENGINE | POWER OF ELECTRIC MOTOR | SPEC SHEET |
| FK20-1BCDL | Single | 11200 mm | 1910 mm | 2200 mm | 6×6 m | R32, R38, T38 | 58 kw | 55 kw | down |
| FK20-2BCDL | Twin | 11800 mm | 1900 mm | 3000 mm | 8.7 x 6.3 m | R32 R38 T38 T45 | 58 kw | 55 kw | down |
| FK80-2BCDL | Twin | 14161 mm | 2530 mm | 3091 mm | 13.4 x 8.65 m | R32 R38 T38 | 75 kw | 120 kw | down |
| FK80-3BCDL | Triple | 16300 mm | 2650 mm | 3790 mm | 12.79 x 15.6 m | R32 R38 T38 | 55 kw | 173 kw | down |
